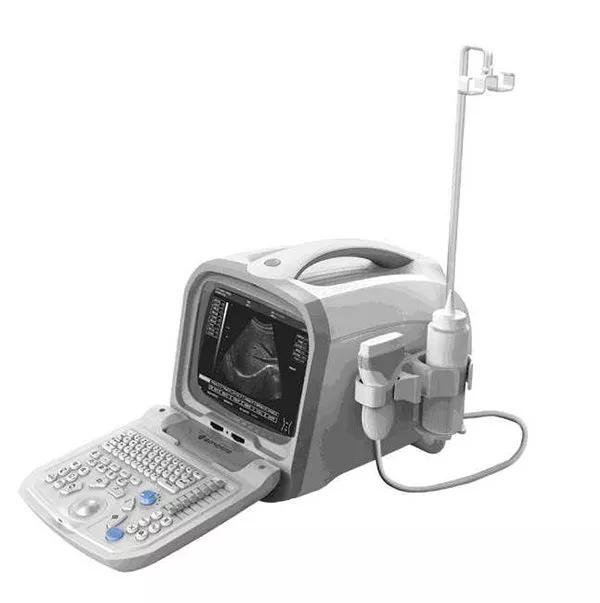

PT6601 Portable B/W Ultrasound Scanner

Specifications

● Scanning Mode: Electronic linear array, electronic convex array

● Imaging Mode: B, B/B, B/M, M, 4B

● Grayscale: 256 levels, four selectable gamma curves

● Transducer Frequency: 2.5-8.5MHz

● Magnification: x0.8, x0.9, x 1.0, x 1.1, x 1.2, x 1.3, x 1.4, x 1.5

● Permanent Storage: 1024

● Cine Loop Image Review: 192 frames, manual and automatic

● Ultrasound Strength: 8 grades from 0-7

● Dynamic Range: Adjustable from 30-75

● USB Ports: 2

● IP Set: 8

● Body Mark: 35 kinds

● Pseudo Color: 5 kinds

● Puncture: Ultrasound-guided puncture

● Image Processing: Up/Down, left/right, black/white, frame correlation edge enhancement, scroll

● Measurement: Circumference, area, volume, heart ratio, velocity, OB, and cardiac

● Focus: Number and location of the focus adjustable

● TGC: Adjustable, near field, midfield and far-field are adjustable from 39-99

● IP Set: Hospital’s name, date, time, fetal weight estimation method, and pseudo color

● Image Storage Format: BMP, DICOM

● Fetal Weight Estimation Method: OSAKA, TOKYO1, TOKYO2, MERZ

● Image Systems: Frame correlation, edge enhancement, dynamic range, center line, scan angle puncture

● Voltage: AC85V-265V
